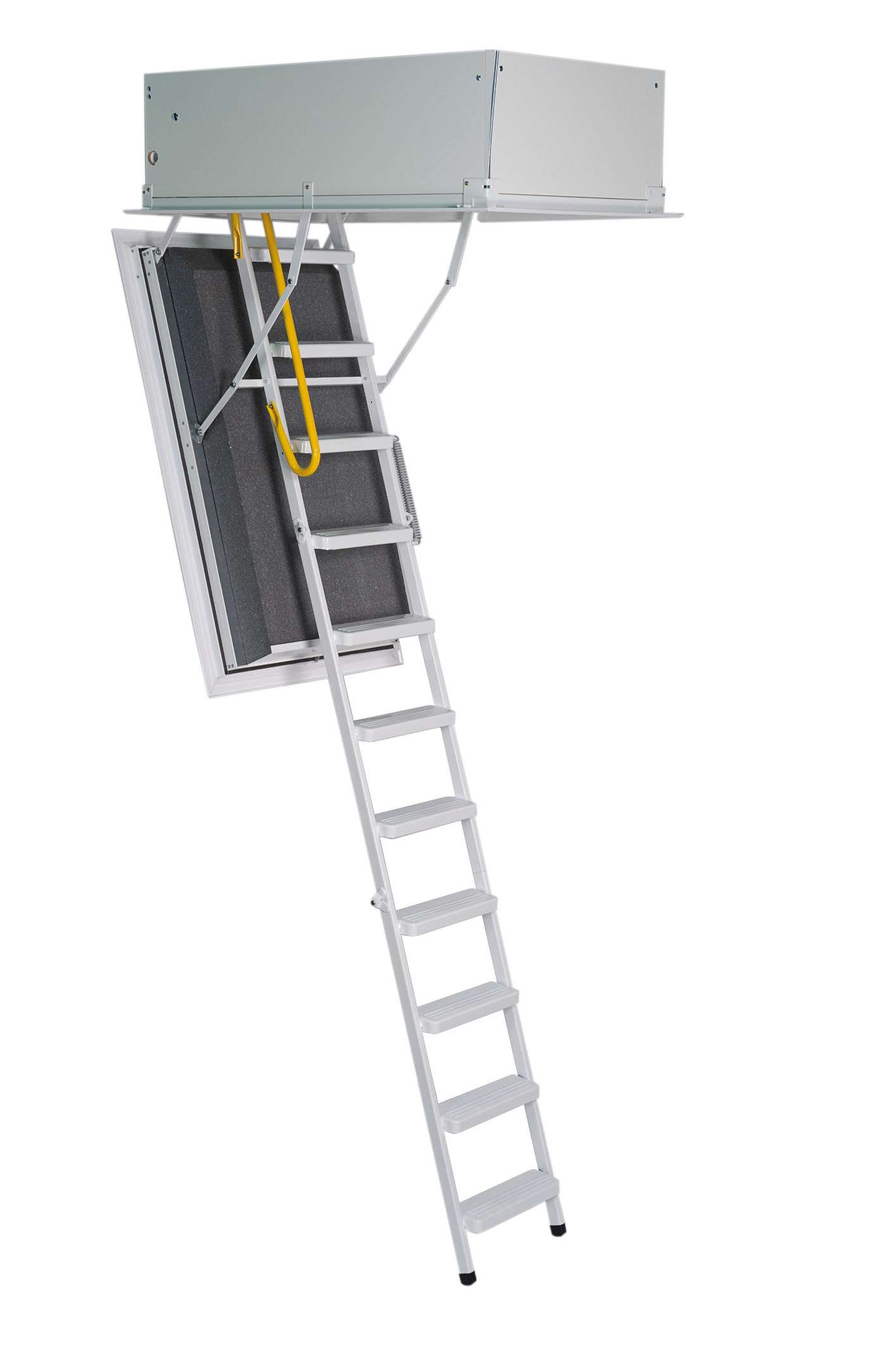

ARCTIC FIRE
Features:
- Fire retardant EI230 tested according to EN1363 and EN1634

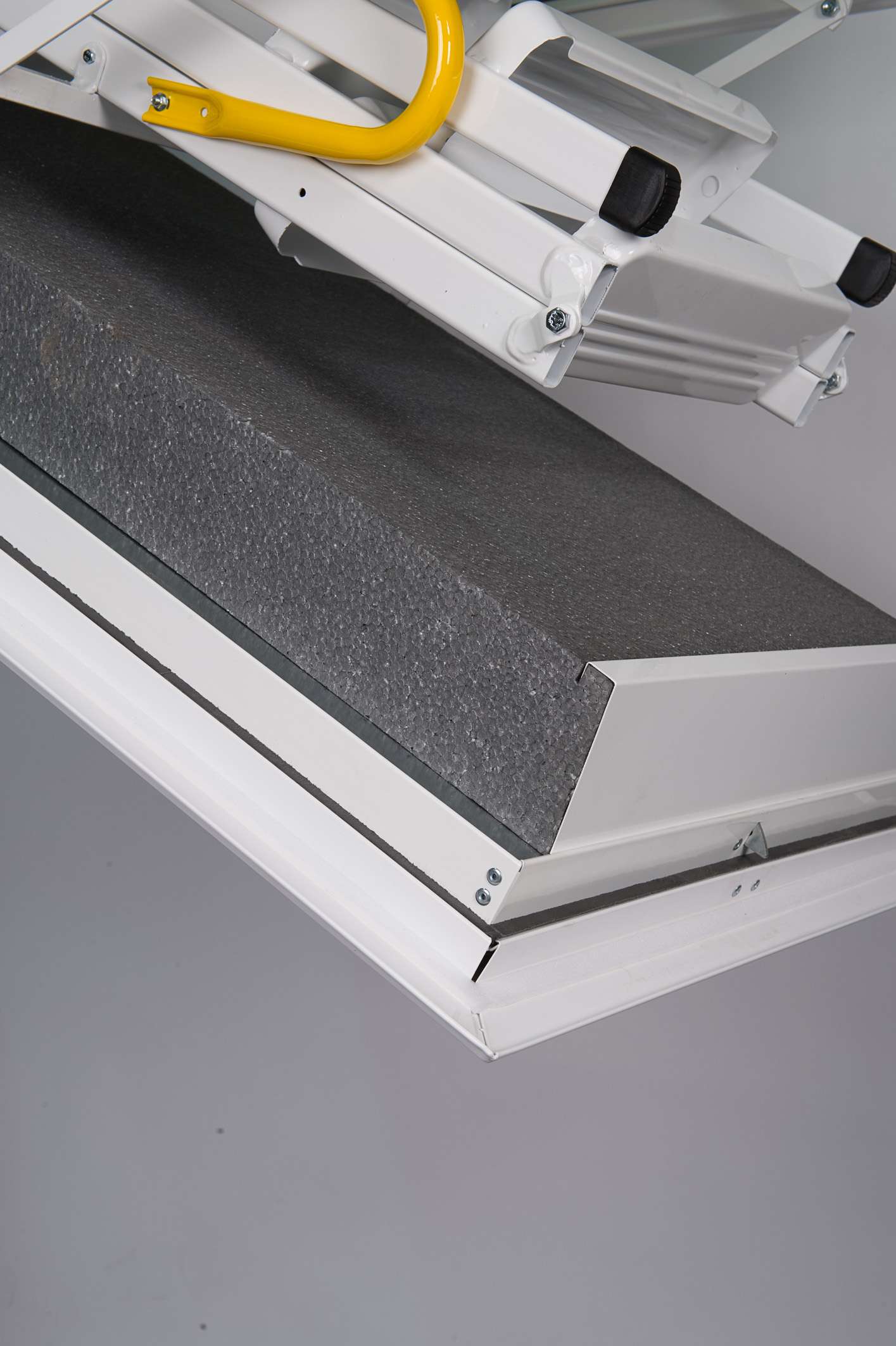

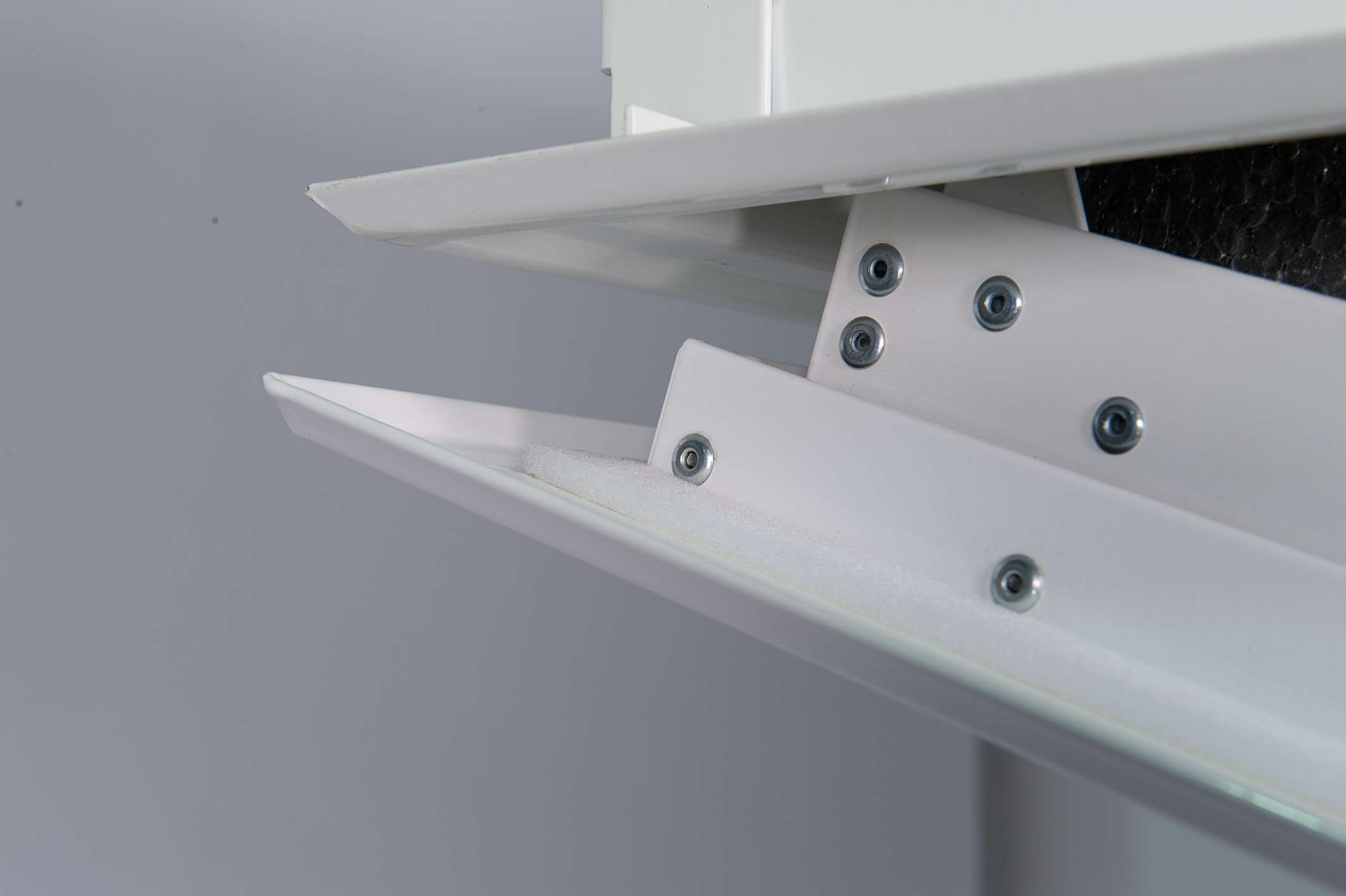

- Beautiful look thanks to seamless, white bottom lid
- Handrail made of high-quality steel supports safe mounting and dismounting
- U-value: 0.21 W/m2K
- U-value with ISO upper cover: 0.14 W/m2K
- Five sizes for different ceiling openings: 110×70, 120×60, 120×70, 130×70 and 140×70 cm
- Maximum room height: 3000 mm
Brand: Minka (AT)
Delivery time: 2-3 weeks
Price range: 1.300,00 € through 1.500,00 €
Description:

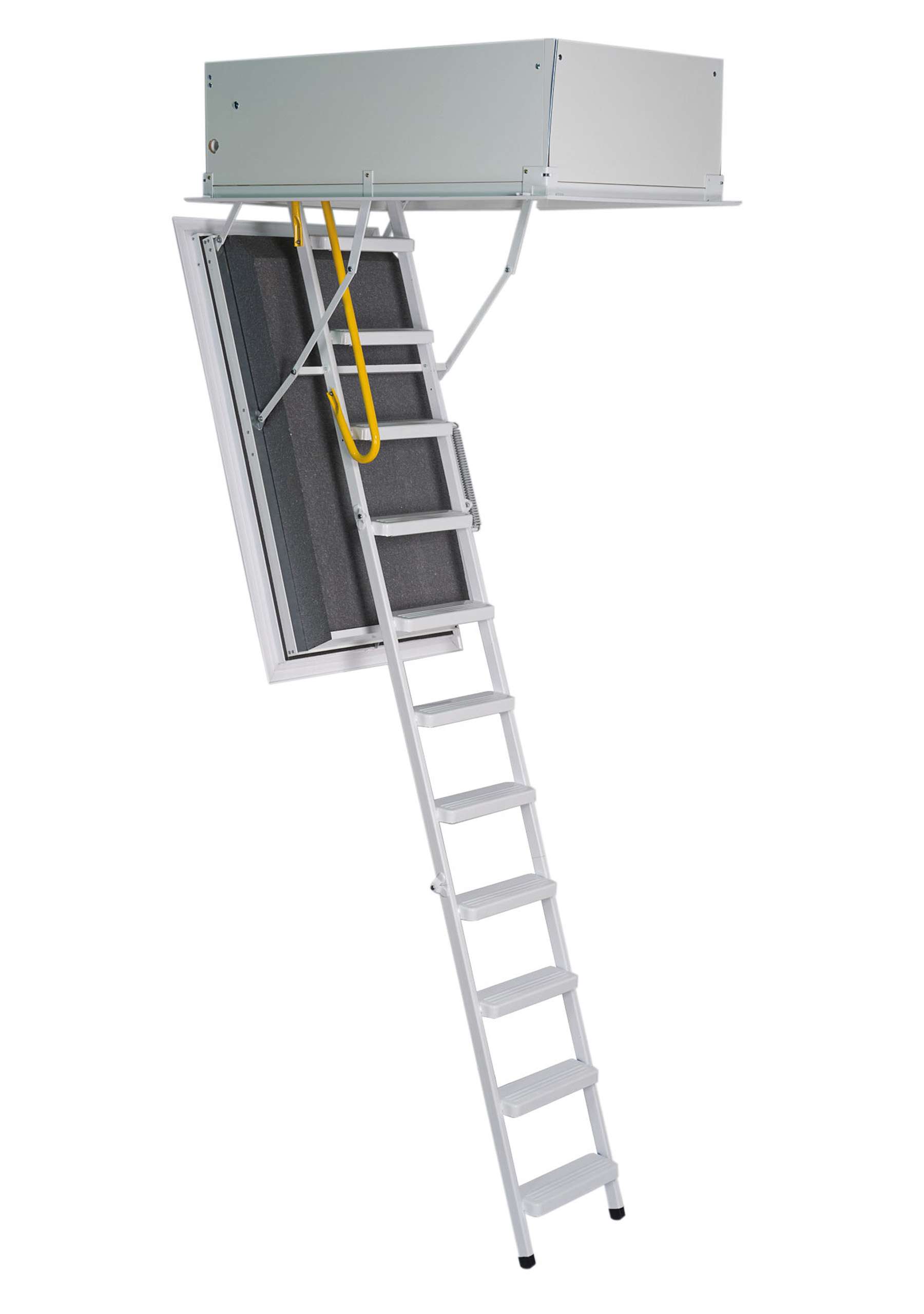

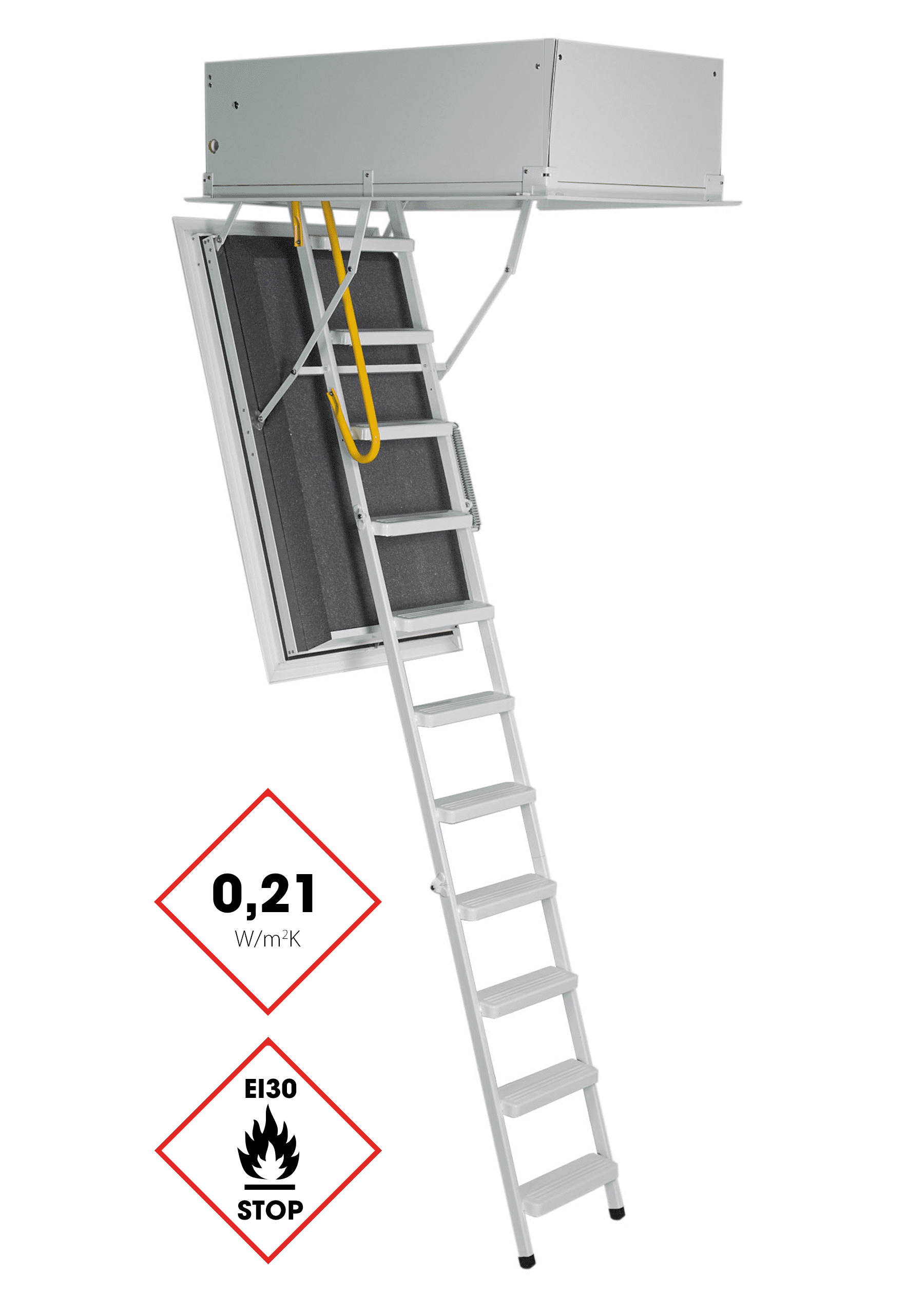

The Arctic Fire attic staircase from Minka is the perfect combination of insulation and fire retardancy. With a U-value of 0.21 W/m2K without top cover and 0.14 W/m2K with ISO top cover, it plays in the top league of insulation technology. According to ÖNORM EN1363 and EN1634, the Arctic Fire Loft Staircase is fire-retardant EI230 and thus has a fire resistance value of at least 30 minutes.
Flexible Design:

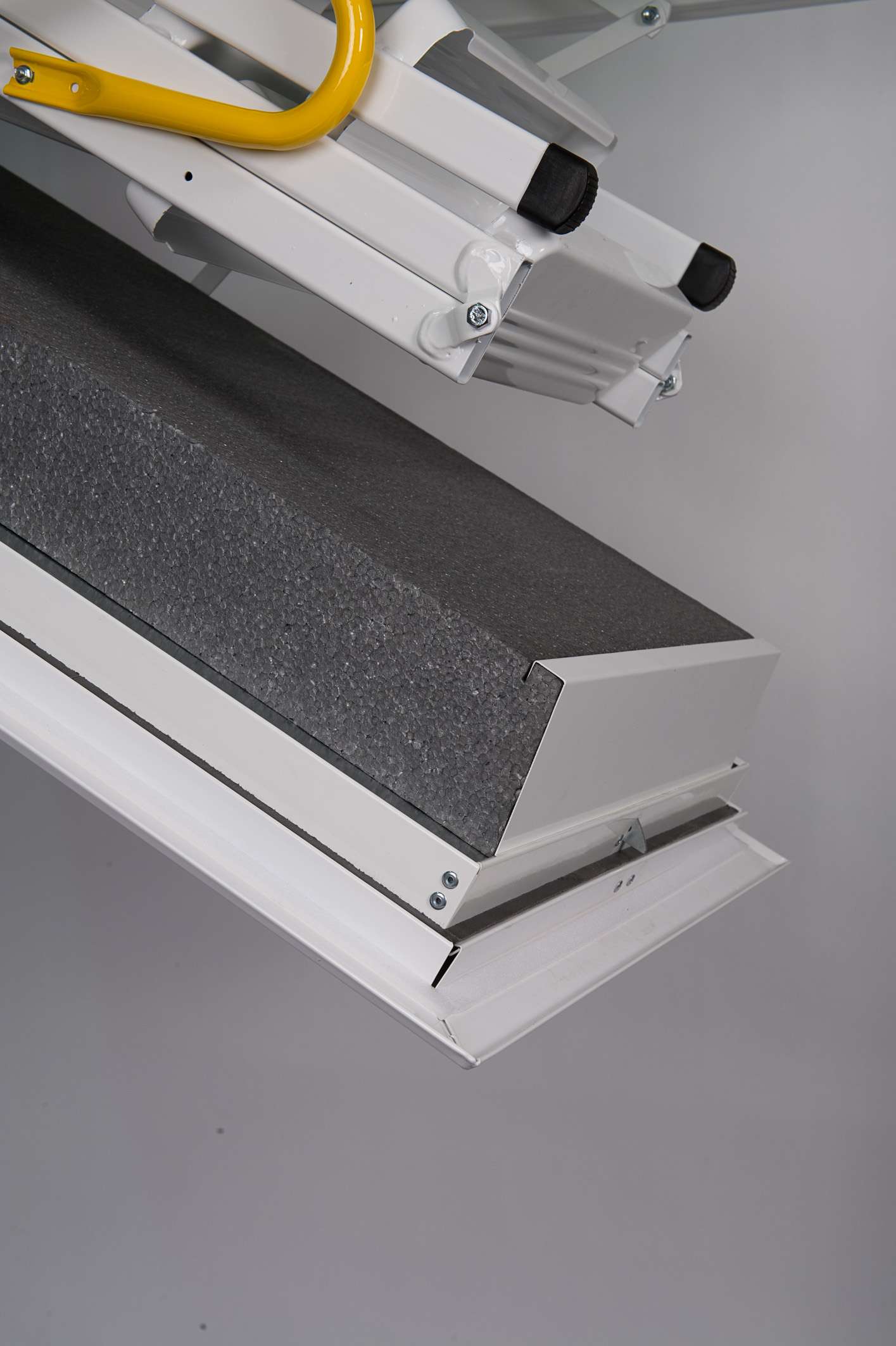

The Arctic Fire loft staircase is available in five different sizes, which means that it fits into ceiling openings with the following dimensions: 110×70 cm, 120×60 cm, 120×70 cm, 130×70 cm and 140×70 cm. Depending on the size, it is suitable for a room height of up to 300 cm, but can be shortened as needed. Thanks to the design lower lid, the Arctic Fire is also characterised by a seamless and particularly beautiful soffit. Like the stairs, this is kept in white, which makes the staircase look discreet but also elegant.
Sustainable use:
Minka’s metal stairs are made of high-quality, powder-coated steel. This makes the Arctic Fire loft staircase extremely resistant to scratches and other damage. Safety and comfort when climbing and descending the attic stairs are ensured by wide metal steps and the handrail made of high-quality steel. So you can enjoy your attic staircase for a long time.
| Scope of application | Interior |
|---|---|
| Material Stufen | Steel |
| Deckenöffnung | 110 x 70 cm, 120 x 60 cm, 120 x 70 cm, 130 x 70 cm, 140 x 70 cm |
| Maximale Geschoßhöhe | Up to 265 cm, Up to 275 cm, Up to 300 cm |
| Hatch box (L x W x H) | 110x69x31 cm, 119x59x31 cm, 119x69x31 cm, 129x69x31 cm, 139x69x31 cm |
| Swivel chamber manual | 106 cm, 116 cm, 116 cm, 116 cm |
| Fold-out space | 65 cm, 58 cm, 58 cm, 48 cm, 38 cm |
Technical documentation
Minka
St. Lorenzen im Mürztal / Austria
The Minka brand is an Austrian company based in St. Lorenzen in the Mürz Valley, which has been producing high-quality stairs for over 60 years. The product range ranges from attic stairs to modular and internal stairs to special fire and thermal insulation solutions. Minka attaches great importance to quality, innovation and sustainable production – including its own solar system and a biomass heating system. Thanks to constant further development, Minka is now one of the leading manufacturers of staircase systems in Europe.
